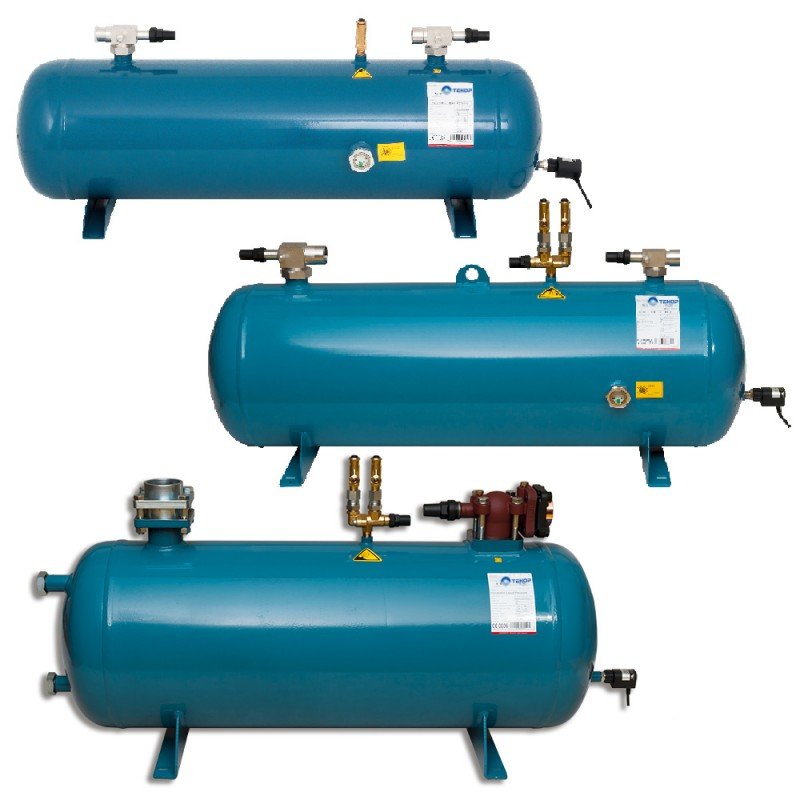

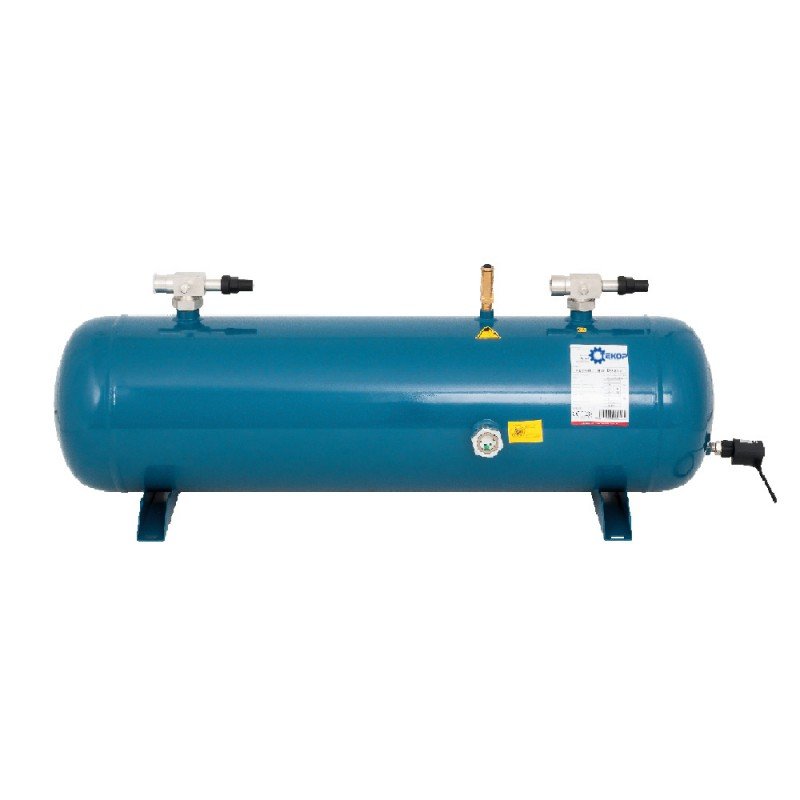

Horizontal Liquid Receiver 500 Lt. (ODS 92 - ODS 92) B
€4,147.50
Tax excluded
Liquid receivers are used to meet fluctuations in the system and ambient temperatures. It serves as a cushion/buffer between liquid and hot gas at high pressure side of the system, prevents the evaporator from hot gas entering and besides, it provides resting of liquid within the system. Also it is used for collecting and storing refrigerant from the system when maintenance needed. There is a 1/2’’NPT connection for safety valve. Additional connections and accessories may be provided. LLS connections are used on the body (under sight glass) after dia. 450mm.
-
Security policy
-
Delivery policy
-
Return policy
LR-HLR-33B-068
Data sheet
- Brand :
- TEKOP
- Production Facility :
- Turkey
- Product Type :
- Horizantal Liquid Receiver
- Input Connection :
- ODS 92
- Outlet Connection :
- ODS 92
- NPT Connection :
- 1/2"
- Volume :
- 500 LT.
- Working Pressure :
- 33 Bar
